Threejs: 数字人生成金色动态粒子效果

发布时间:2024年06月06日

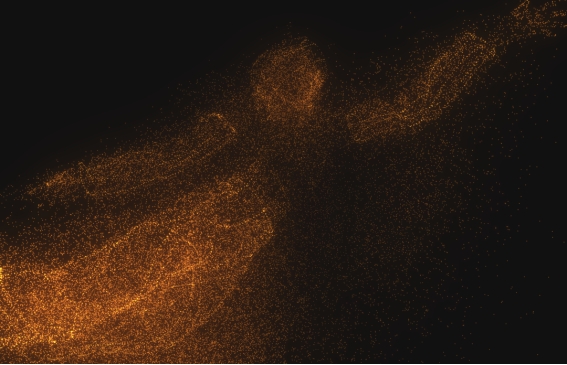

昨天的文章提到通过修改数字人的材质做全息投影仪的动态效果,今天分享一下生成金色动态粒子人的代码,效果图如下:



效果中还包含多个粒子效果的动态转换,有了这个,再加上摄像头,就可以完全模拟亚运会的数字人效果了。

动画功能用到了gsap的插件:gsap/MotionPathPlugin

粒子效果主要用的是glsl代码。

看一下:

顶点着色器:

```

// 穿梭动画

uniform sampler2D uPositions;//RenderTarget containing the transformed positions

uniform float uSize;

uniform float uPixelRatio;

uniform float uScroll;

varying vec3 vPos;

varying vec2 vUv;

void main() {



  //the mesh is a nomrliazed square so the uvs = the xy positions of the vertices

  vec3 pos = texture2D( uPositions, position.xy ).xyz;

  //pos now contains a 3D position in space, we can use it as a regular vertex



  float range = 1.0 / uTotalModels;

  float customSize = uSize;



  vec4 modelPosition = modelMatrix * vec4(pos, 1.0);

  vec4 viewPosition = viewMatrix * modelPosition;

  vec4 projectionPosition = projectionMatrix * viewPosition;





  if (uScroll < range) {

    customSize = mix(7.0, 10., uScroll * uTotalModels);

  } else if (uScroll < range * 2.0) {

    customSize = mix(10., 5., (uScroll - range) * uTotalModels);

  } else if (uScroll < range * 3.0) {

    customSize = mix(5., 20., (uScroll - range * 2.0) * uTotalModels);

  } else {

    float scroll = max((uScroll - range * 3.0), (uScroll - range * 3.0) * uTotalModels);

    customSize = mix(20., 15., scroll);

  }



  gl_Position = projectionPosition;

  gl_PointSize = customSize * uPixelRatio;

  gl_PointSize *= (1.0 / - viewPosition.z);



  vPos = pos;

}

片元着色器:

```

varying vec3 vPos;

uniform float uTime;

uniform float uScroll;

void main()

{

//  if ( vPos == vec3(0.0) )

//  {

//    discard;

//  }



  float distanceToCenter = distance(gl_PointCoord, vec2(0.5));

  float strength = 0.05 / distanceToCenter - 0.1;



  vec3 color = vec3(1.0, 0.5, 0.0);



  if (uScroll < uRange) {

    color = mix(color, vec3(1.0, 0.1, 0.0), uScroll * uTotalModels );

  } else if (uScroll < uRange * 2.0) {

    color = mix(vec3(1.0, 0.1, 0.0), vec3(1.0, 0.5, 0.0), (uScroll - uRange) * uTotalModels );

  }else{

    //color =  vec3(1.0, 0.5, 0.0);

  }



  // set FireFilies orange Color

  gl_FragColor = vec4(color, strength * length(vPos));

}





源码地址:https://github.com/MisterPrada/morph-particles



出自:https://mp.weixin.qq.com/s/KkIkFSrVJKLG_oZejozmhQ
